  • Inversor Para Bombas Veichi 2.2Kw
  1. Productos
  2. Inversor Para Bombas Veichi 2.2Kw
Tarifa pública

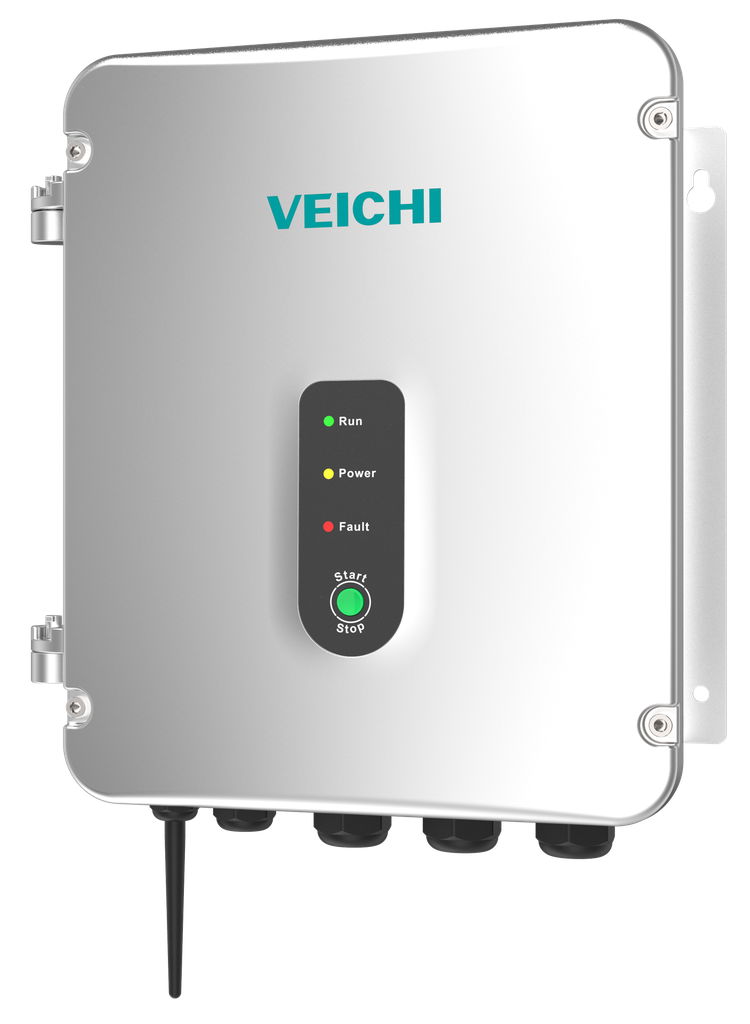

Inversor Para Bombas Veichi 2.2Kw

    $ 365.990 $ 365.990 365990.0 CLP

    $ 365.990

    + IVA

    Esta combinación no existe.

    Add to Cart
    Share this product

    Adjuntos




    Product Image
    Inversor Para Bombas Veichi 2.2Kw

    $ 365.990 $ 365.990 365990.0 CLP

    $ 365.990

    Add to Cart

    SI30 Inversor Solar para Bombeo

    El inversor para bombas solar SI30, tiene tecnología de transmisión inalámbrica (GPRS, Bluetooth, WIFI), APP movil y "one-key operation". Con un diseño modular, hay cuatro características principales que se pueden elegir. Con protección grado IP65, puede ser instalado a la intemperie, sin la necesidad de usar un gabinete. Con accionamiento sincrónico, asincrónico, BLDC soporta una variedad de motores para bombas. La nueva apariencia de aluminio, es simple, elegante y mas confiable.



    1. Smart Internet of Things-Smart Irrigation.
    2. Diseño modular.
    3. Transmisión Inalámbrica, aplicación móvil.
    4. Protección IP65, sin necesidad de un gabinete.
    5. AC110V/220V/400V múltiples opciones de voltaje..
    6. Accioamiento de una variedad de imanes sincrónicos y asincrónicos, motores BLD.
    7. MPPT Maximum power output + multiple protection functions.
    8. Nueva apariencia de aluminio, sencilla y confiable.

    Metal appearance, perfect integration of fashion sense and technology

    1. Die-cast aluminum alloy shell, lighter and more reliable, with a service life of more than 25 years.
    2. Fine surface treatment, high-speed sandblasting, electrochemical anodization.
    3. The brand-new keyboard design, the appearance is simple, supports the end-user "one-key start and stop".

    IP65 triple protection, bring you a different experience

    1. Waterproof panel: regardless of wind or rain, the operation can be completed with one button.
    2. Waterproof connector: both input and output are safe and reliable.
    3. Waterproof shell: sturdy armor, shielding SI30 solar pump inverter from wind and rain.

    Internal modular design, where to choose

    1. AC/DC switching module: circuit power supply, intelligent switching.
    2. Inverter module: compact and streamlined, abandon redundancy.
    3. Filter module: compact filter, protect well pump.
    4. IOT Module: Smart IoT, all in the cloud.

    Smart monitoring brings smart irrigation

    1. Customize the PQ curve, and automatically calculate the flow rate, daily flow, cumulative flow, daily power generation, and cumulative power generation parameters that are most concerned by users based on the curve.
    2. Intelligent Internet of Things system: Internet of Things big data platform, wireless transmission technology (GPRS, Bluetooth or WIFI), can only judge the need for water and fertilizer, and realize intelligent irrigation.

    Powerful software function to escort the water pump

    1. MPPT efficiency>99%: Adjust the output frequency according to the sunlight intensity to obtain the maximum power point in real-time.
    2. The special protection function of the photovoltaic water pump, dormancy, low frequency, dry, overcurrent, minimum power to ensure safe and reliable operation of the water pump.

    Drive forever, multiple motors can drive

    1. PMSM: Permanent magnet synchronization, high power factor, low heat generation, high reliability.
    2. BLDC: Brushless DC, fast response, high starting torque.
    3. AM: Asynchronous induction, wide application, convenient maintenance.
    4. Single-phase motor: easy to get electricity, home use.

    Mobile APP remote control, you can control it without going out

    1. Bluetooth, WIFI, GPRS bring wireless transmission technology.
    2. Chinese and English language switching is widely used.
    3. The drop-down menu is convenient and quick to set parameters.
    4. The digital tube displays the current data clearly and accurately.
    5. The circular operation button brings a different experience.

    SI30 Solar Pump Inverter Certificate

    1. CE: All series.
    2. IEC:

    1) SI30-D5-5R5G-R: IEC 61683, IEC 62109-1, IEC 62109-2;
    2) SI30-D5-7R5G-R: IEC 61683, IEC 62109-1,IEC 62109-2;
    3) SI30-D5-011G-R: IEC 61683, IEC 62109-1, IEC 62109-2;

    SI30 Solar Water Pump Inverter Video
